Industrial Safety & Welfare Part 02

Men At Work End

Men at work end sign is used to worn the motorists the end of the men working area in the road construction section.

image Men at work end

Road Narrow

Road narrow sing is used to worn the motorists existing width becomes restricted. According to type of restriction we must decided the sing type of road narrow to be used. Road narrow sign normally fix at twenty five after the Men at Work signboard

image Road narrow

Hump

Hump sign is used to worn the motorists, hump is ahead and slow down the vehicle. The purpose of Hump make the vehicle speed to death slow at hazardous places so the vehicle must slow down their speed and accident con be minimize. Hump must be constructed with hump ahead signboards fix both side of hump. Two hump ahead signboards fix thirty meters after and before the hump.

image Hump

Traffic Cones

Traffic cones are temporarily provided on the carriageway during road works and are generally placed around the obstruction or parallel to the centre line of road. Traffic cones are made of rubber or suitable plastic material having the standard color and size as shown in the figure beside and could be used to divert traffic cones around road work or trenching. The spacing between traffic cones vary according to the speeds of motor vehicles. An average cone spacing 9m is used on the straight section parallel to the centre line of the road and 12m spacing on the tapering section, A tapering angle of 30 to 45 degrees may be adopted.

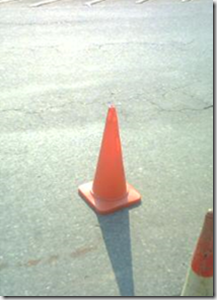

image Traffic cone

Flags

Where road works are in progress the narrowing of road carriageway may permit only single file traffic and it may become necessary to provide for control of traffic at the two ends. This particularly so If the section is long and the volume of traffic is high manual control of traffic could be effected by two workman carrying red and green flags at the two end and permit only traffic in one direction at a time. In the alternative traffic control could be affected by the use of temporary traffic signals at two ends of the narrowed section.

Flagger

Before some is given the job of a flagger he must be trained. The flagger has an important task since safety for working as well as road users is a lot dependent on flagger.

The flagger must be wearing a reflective safety vest for visibility and also to enable driver to identify the flagger as a person authorized to direct traffic.

The flagger behavior is most important since driver’s tendency to obey orders given by the flagger is very much dependent on that of the flagger behaving orderly.

To direct traffic the flagger should use the red and green flags or the stop and go signs. The flagger should not wave his arms traffic but should use flag or signs and hold them steadily so the driver can see and understand the signals given.

image flaggers

Stop And Go Sign

The stop side of the sing shall be red with a white band the text “STOP” All road users are obliged to stop and wait as long as the ”STOP SIDE” is directed towards the traffic.

The “GO SIDE” of the sign shall be green with a white a while band and the text “GO” Road users may proceed when the “GO SIDE” is directed towards traffic

image stop and go sign

Welfare Facilities

The road development Authority is a semi government firm. They rules and regulation like a government department, there are lot of welfare facilities and French – benefit to employs. This firm is better to employ any level workmen to employs.

  • These are the benefit
  • RDA allowance
  • Dead donation
  • Annual bones
  • Festival allowance
  • Petrol allowance
  • They give an uniform
  • Loan facilities
